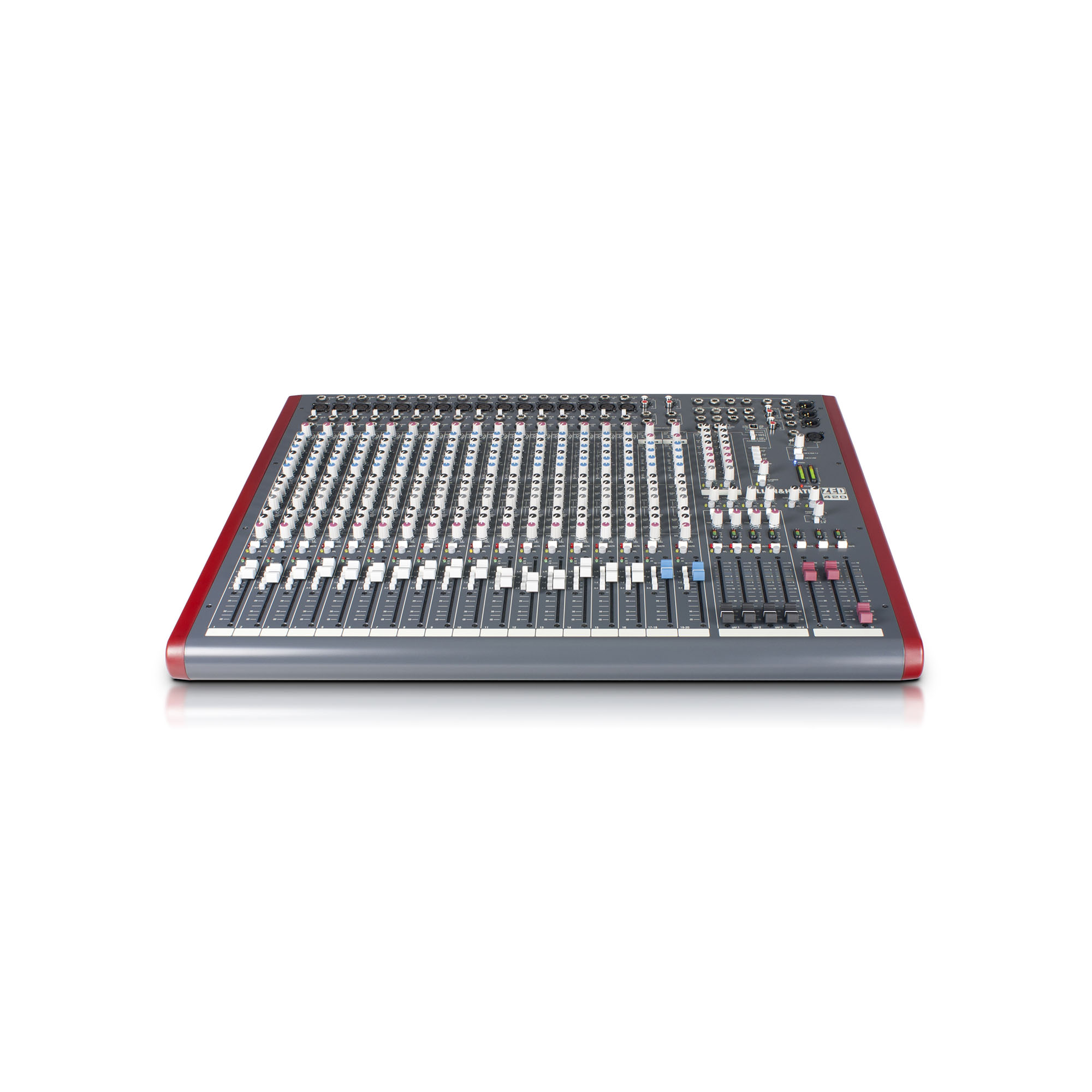

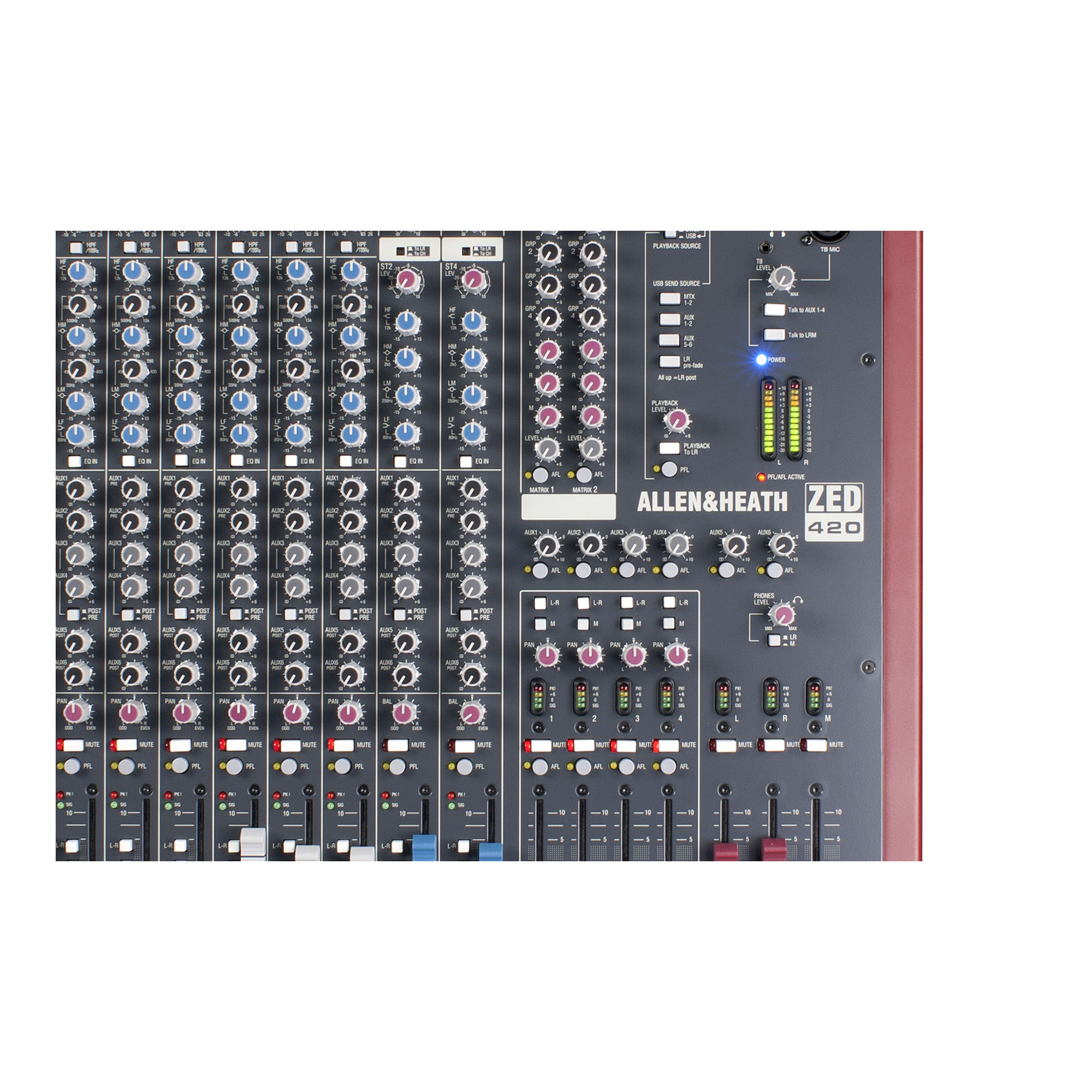

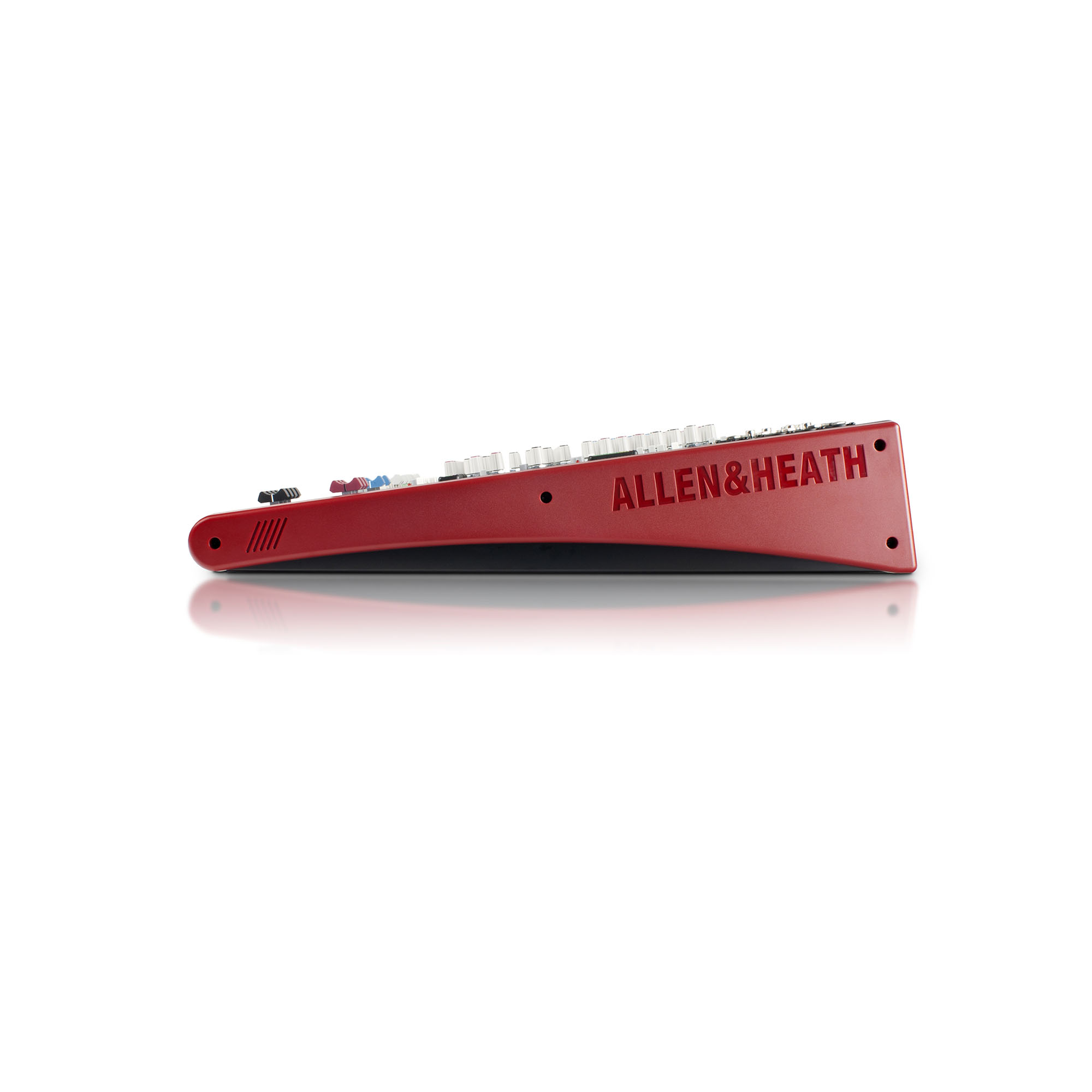

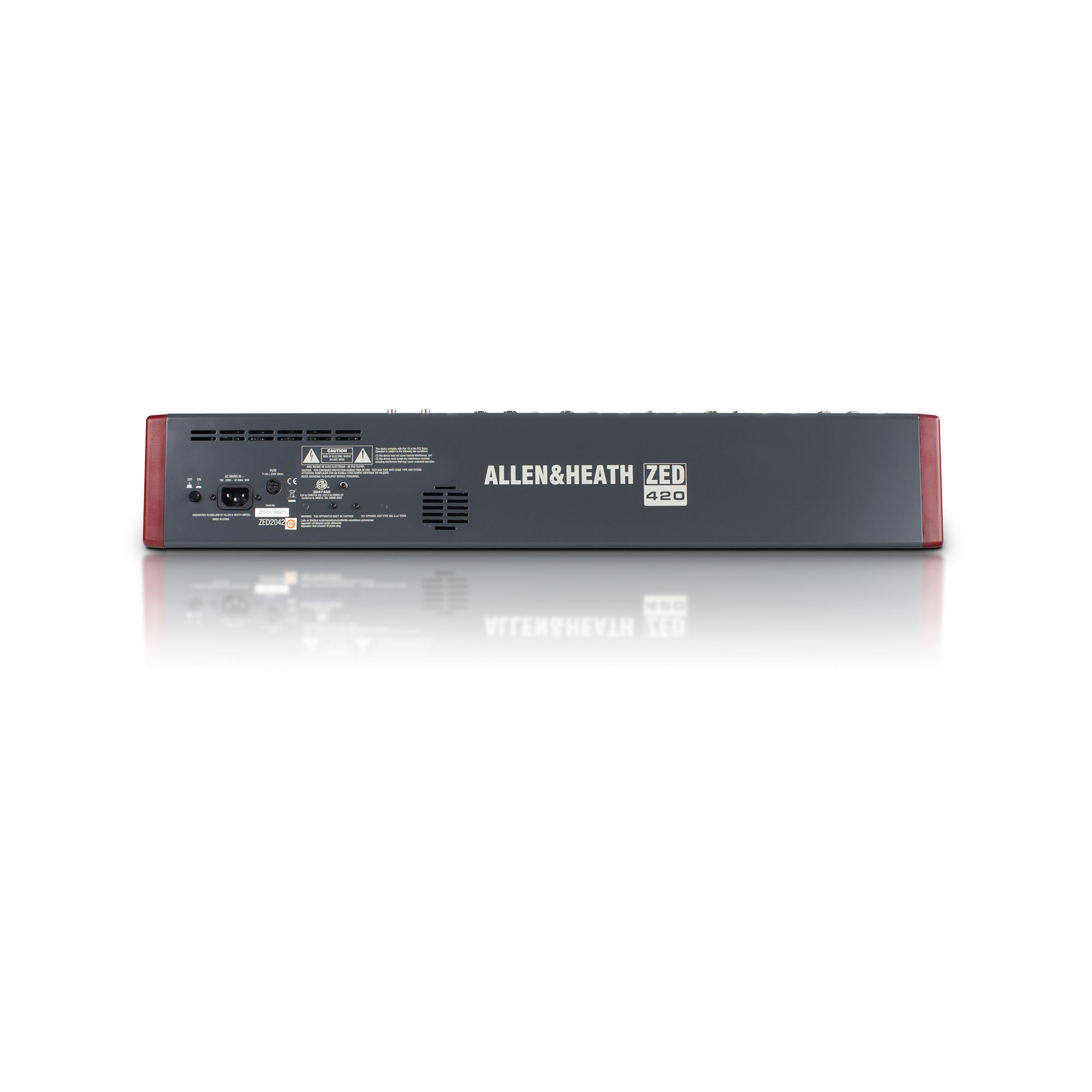

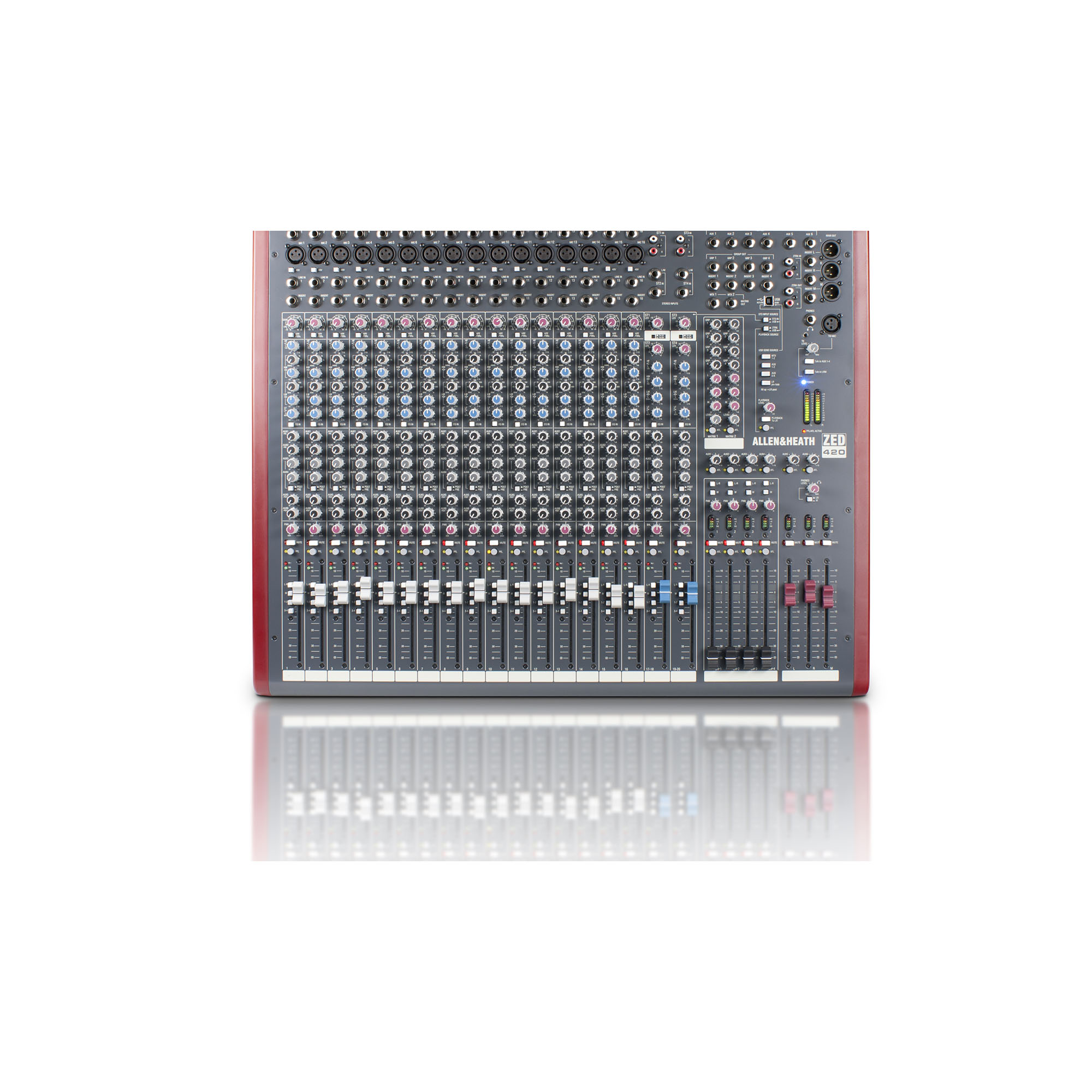

Allen & Heath ZED-420

ZED-420

ZED-420 è eccellente per bande, luoghi di culto, teatri o applicazioni AV.

Ha una serie di funzioni veramente professionale, che si adatta qualsiasi applicazione audio rinforzo e noleggio professionale PA magazzino.

COD: A&H-ZED-420 Categorie: ,

Descrizione

ZED-420

Eccellente per bande, luoghi di culto, teatri o applicazioni AV.

Ha una serie di funzioni veramente professionale, che si adatta qualsiasi applicazione audio rinforzo e noleggio professionale PA magazzino.

ZED-420 dispone di audio configurabile USB in / out, rende facile catturare registrazioni stereo, 16 ingressi microfonici o di linea e 2 doppi ingressi stereo, EQ a 4 bande, 4 sottogruppi, 6 mandate ausiliarie e una matrice 7 × 2.

Caratteristiche

  • 16 mono channels
  • 2 dual stereo inputs with 4-band EQ
  • Neutrik mic XLR
  • Neutrik 1/4 inch jacks
  • Channel insert
  • Super wide gain mic/line input
  • 4-band EQ with 2 swept mids and in/out switch
  • Illuminated mute
  • Sound image pan
  • Illuminated PFL & peak warning indicator
  • ALPS 100mm faders
  • 6 auxiliary sends (2 pre, 2 post, 2 pre/post)
  • 4 sub groups fed from each channel
  • All inputs with level control
  • 12 bar meters
  • L, R and M main mix outputs
  • 2 matrix sections available; can send output to USB
  • Individual channel 48V phantom power
  • Direct output on every mono channel
  • Peak and signal indication on every channel
  • Configurable USB stereo audio in/out
  • Master level controls on all outputs
  • Easy to use layout – all connections and controls on top surface

Specifiche

Operating Levels:

  • Inputs
    • Mono channel (XLR) Input +6 to –63dBu for nominal (+17dBu in max)
    • Mono channel Line Input (Jack socket) +10 to –26dBu (+30dBu maximum)
    • Insert point (TRS Jack socket) 0dBu nominal +21dBu maximum
    • Stereo Input (Jack sockets) 0dBu nominal (control = Off to +10dB)
    • Stereo input (phono sockets) 0dBu nominal (control = Off to +10dB)
    • 2 Track Input (phono sockets) 0dBu nominal +21dBu maximum
  • Outputs
    • L, R & Mono Outputs (XLR) +4dBu nominal. +27dBu maximum.
    • L, R & M Insert (TRS Jack socket) -2dBu nominal +21dBu maximum
    • Group Outputs (Jack sockets) +4dBu nominal. +27dBu maximum.
    • Group Insert (TRS Jack socket) -2dBu nominal +21dBu maximum
    • Aux Outputs (Jack sockets) -2dBu nominal +21dBu maximum (Bal Option +4)
    • Matrix Outputs (TRS Jack socket) -2dBu nominal. +21dBu maximum. (Bal Option +4)
    • 2 Track Output (phono sockets) 0dBu nominal. +21dBu maximum.
    • Direct Out (TRS Jack socket) 0dBu nominal. +21dBu maximum.

Frequency Response

  • Mic in to Mix L/R Out, 30dB gain +0.5/-1dB 20Hz to 20kHz.
  • Line in to Mix L/R out 0dB gain +0.5/-1dB 10Hz to 30kHz
  • Stereo in to Mix L/R out +0.5/-1dB 10Hz to 30kHz

THD+n

  • Mic in to Mix L/R Out, 0dB gain 1kHz +10dBu out 0.004%
  • Mic in to Mix L/R Out, 30dB gain 1kHz 0.014%
  • Line in to Mix L/R out 0dB gain 0dBu 1kHz 0.005%
  • Stereo in to Mix L/R out 0dB gain +10dBu 1kHz 0.003%

Headroom

  • Analogue Headroom from nominal (0Vu) 21dB
  • USB in & out headroom from nominal (0 USB in & out headroom from nominal (0Vu) 14dB
  • USB Audio:
    • CODEC (Coder/Decoder)
    • In/Out USB 1.1 compliant 16bit.
  • Sample Rate 32, 44.1, or 48kHz

Visita il sito del produttore:

http://www.allen-heath.com/ahproducts/zed-420/
